State Management with NgRx
Building Side Effects
Effects are one of the most powerful features in NGRX. Let’s see some practical examples, like calling an API or streaming real-time data
State Management with NgRx (4 Part Series)
Introduction
Architecting the Store
Building Side Effects
Abstracting State with Facades
This is the third article of a series that aims to explain in detail a step-by-step approach to building an Angular application with NGRX.
- In the first article of this series, I wrote a small overview of all the concepts surrounding the NGRX platform.
- In the second article of this series, I started writing the store of the application and the state’s entities.
If you have never worked with NGRX, or have never done something in-depth with, I’d really recommend you read it.
Summary

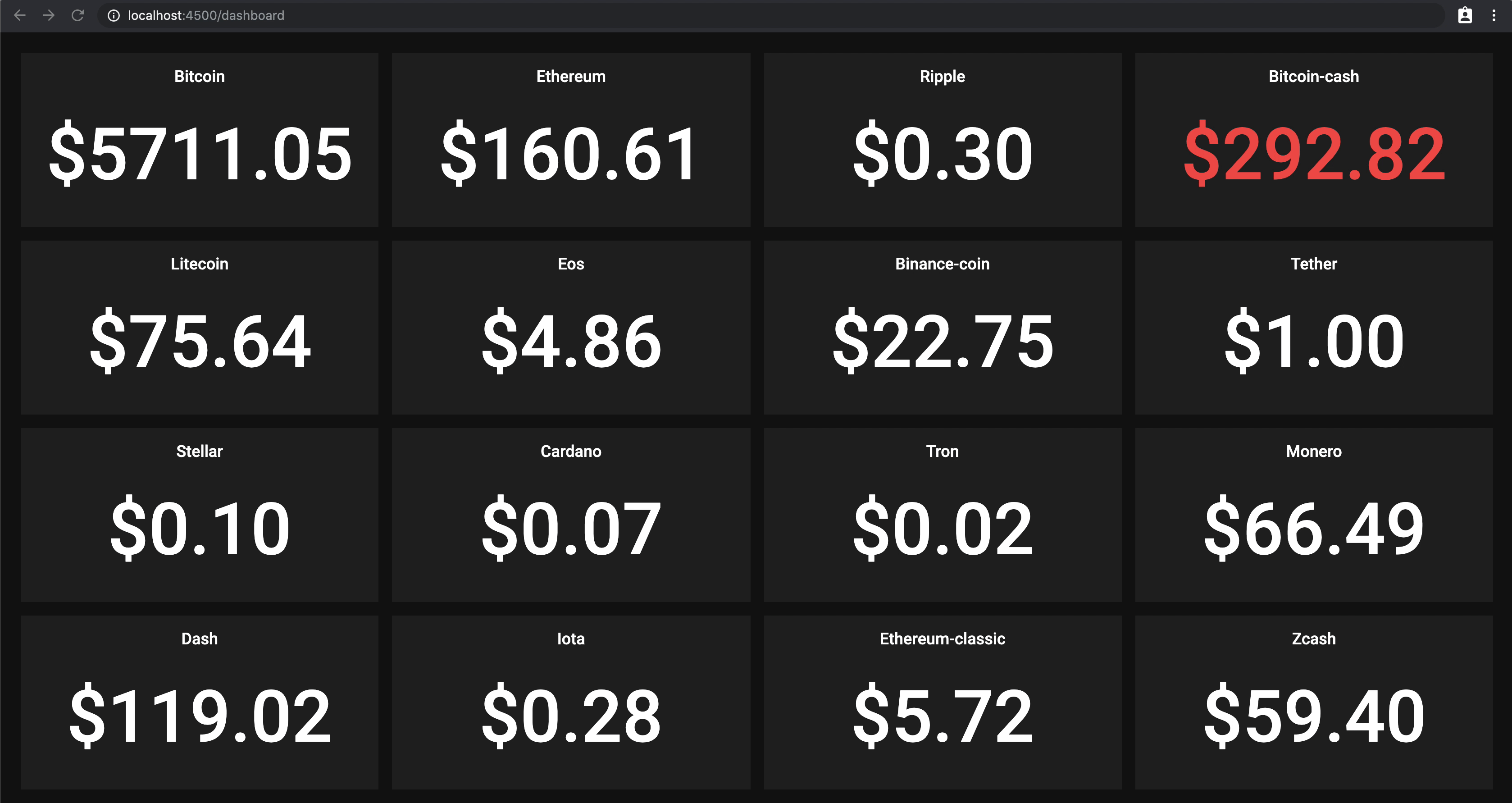

Just to summarise what I introduced in the previous articles, we have an application that aims to display a dashboard with cryptocurrencies prices.
The application’s logic is built using three service modules, each module manages a different feature of our store.
These are:
- dashboard, that manages the logic of the dashboard and its tiles
- assets, a list of assets fetched from Coincap’s API
- prices, a stream of prices from Coincap’s WebSocket API
In this article we will be learning:
- how to build effects in NGRX 8
- how to build an effect that fetches the assets list from the API
- how to build an effect that connects to a WebSocket and listens for messages that will be stored in our application’s state
Coincap’s API Service
In order to fetch data from Coincap, we create a service that we’re going to use in our Effects classes:
@Injectable()
export class CoincapService {
constructor(private http: HttpClient) {}
public getAssets(
search: string[],
ids: string[] = [],
limit = 5
): Observable<GetAssetsResponseDto> {
return this.http.get<GetAssetsResponseDto>(EndPoints.Assets, {
params: { search, ids, limit: limit.toString() }
});
}
}
At the moment, we have one single method:
- getAssets, that by default will be fetching the first top 5 assets
This method will be returning GetAssetsResponseDto which is simply:
interface GetAssetsResponseDto {
data: Asset[];
timestamp: number;
}
Assets Effects
Let’s now create the effects for the Assets store. As we have seen in the previous article, we have created three actions:
- getAssetsRequestStarted
- getAssetsRequestSuccess
- addAssets
Private API
Let’s summarize what our actions will be doing:
- we want to react to a getAssetsRequestStarted action and dispatch a getAssetsRequestSuccess action
- once getAssetsRequestSuccess action is received, we will dispatch addAssets that gets picked up by the reducer function and add the assets to the store
Let’s first create the effect that will be responsible for fetching the assets:
private getAllAssets() {
return createEffect(() =>
this.actions.pipe(
ofType(getAssetsRequestStarted.type),
mergeMap(({ payload }: { payload: string[] }) =>
this.coincap.getAssets(payload).pipe(
map((response: GetAssetsResponseDto) => response.data),
catchError(() => of(undefined))
)
),
filter(Boolean),
map((payload: Asset[]) => {
return getAssetsRequestSuccess({ payload });
})
)
);
}
Let’s break this effect down
- instead of using the decorator
@Effect, we simply import the functioncreateEffectfrom@ngrx/effects - we receive an action
getAssetsRequestStarted - we call the
getAssetsmethod we defined earlier in the Coincap service, and we map the stream to the result of this request - if there’s an error, we simply return
undefinedwhich will be filtered in the stream thanks tofilter(Boolean) - we then map the stream to the action
getAssetsRequestSuccess
The second effect will be responsible for intercepting getAssetsRequestSuccess and simply map it to addAssets
private addAssets() {
return createEffect(() =>
this.actions.pipe(
ofType(getAssetsRequestSuccess.type),
map(({ payload }: { payload: Asset[] }) =>
addAssets({ payload })
)
)
);
}
Public API
Finally, we expose the public API:
public getAllAssets$ = this.getAllAssets();
public addAssets$ = this.addAssets();
And this is the complete snippet:
@Injectable()
export class AssetsEffects {
constructor(private actions: Actions, private coincap: CoincapService) {}
public getAllAssets$ = this.getAllAssets();
public addAssets$ = this.addAssets();
private addAssets() {
return createEffect(() =>
this.actions.pipe(
ofType(getAssetsRequestSuccess.type),
map(({ payload }: { payload: Asset[] }) =>
addAssets({ payload })
)
)
);
}
private getAllAssets() {
return createEffect(() =>
this.actions.pipe(
ofType(getAssetsRequestStarted.type),
mergeMap(({ payload }: { payload: string[] }) =>
this.coincap.getAssets(payload).pipe(
map((response: GetAssetsResponseDto) => response.data),
catchError(() => of(undefined))
)
),
filter(Boolean),
map((payload: Asset[]) => {
return getAssetsRequestSuccess({ payload });
})
)
);
}
}
Prices Effects
In order to fetch the prices from the Coincap’s WebSocket API, we extend the Coincap service we created earlier and add a new method responsible for connecting to the price streams and returning an Observable that emits price ticks.
WebSocket Connection
In order to do this, we:
- create a connection by calling
WebSocket(url) - we create a new Observable, and inside this, we emit an event every time the WebSocket connection receives a message using the
onmessagehook - we define the
unsubscribemethod, which will simply close the WebSocket connection
export class CoincapService {
// .. other methods
webSocket: WebSocket;
public connectToPriceStream(assets: string[]): Observable<PriceState> {
this.createConnection(assets);
return new Observable(observer => {
const webSocket = this.webSocket;
webSocket.onmessage = (msg: MessageEvent) => {
observer.next(JSON.parse(msg.data));
};
return {
unsubscribe(): void {
webSocket.close();
}
};
});
}
private createConnection(assets: string[]) {
if (this.webSocket) {
this.webSocket.close();
}
this.webSocket = new WebSocket(
EndPoints.WebSocket + `?assets=${assets}`
);
}
}
API
We have created three actions:
- createPriceSubscription
- closePriceSubscription
- addPrice
And this is what the effects look like:
@Injectable()
export class PricesEffects {
constructor(
private actions: Actions,
private coincap: CoincapService,
private pricesFacade: PricesFacadeService
) {}
createPriceSubscription$ = this.createPriceSubscription();
prices$ = this.getPrices();
private createPriceSubscription() {
return createEffect(() =>
this.actions.pipe(
ofType(createPriceSubscription.type),
map(({ payload }) => payload),
withLatestFrom(this.pricesFacade.getSubscribedAssets()),
mergeMap(([payload, assets]: [string, string[]]) => {
return this.connectPriceStream([...assets, payload]);
}),
map((price: PriceState) => priceReceived({ payload: price }))
)
);
}
private getPrices() {
return createEffect(() =>
this.actions.pipe(
ofType(priceReceived.type),
map(({ payload }) => addPrice({ payload }))
)
);
}
private connectPriceStream(assets: string[]) {
return this.coincap
.connectToPriceStream(assets)
.pipe(
takeUntil(
this.actions.pipe(ofType(closePriceSubscription.type))
)
);
}
}
Let’s break down the createPriceSubscription$ effect:
- we receive an action
createPriceSubscription - we connect to the stream via the Coincap service, which will return an Observable that will emit prices
- every price will create an action
priceReceived - we add a
takeUntiloperator to the price stream observable, so that every time an actionclosePriceSubscriptionis received, the observable will automatically be unsubscribed
The prices$ effect is fairly simple:
- we receive an action
priceReceivedand we map it to an actionaddPricethat will be handled by the reducer and will add the price to the store
Updating the Store Modules
Lastly, we need to update both the store service modules by adding the effects using the method EffectsModule.forFeature([EffectsClass]) .
The prices store module looks something like this:
@NgModule({
imports: [
StoreModule.forFeature('prices', pricesReducer),
EffectsModule.forFeature([PricesEffects])
],
providers: [
// still empty!
]
})
export class PricesStoreModule {}
Final Words
In this walkthrough, we create a few very simple effects that do some very common tasks, such as talking to an API endpoint, creating streams of Observables from real-time messaging systems, and updating the reducer as a result of dispatching actions.
In the next article, we will finally build some components and connect the store to the UI using a Facade Service.
Hope you enjoyed the article and leave a message if you agree, disagree, or if you would do anything differently!
